Cast Iron Pipe Lining in Florida
UV-cured-in-place pipelining restores cast iron drain systems in as little as 1 to 3 days, with no digging, demolition, or displacement, all backed by a lifetime warranty.
Cast Iron Pipelining:How It Restores Florida Homes
Cast iron pipe lining is the modern, no-dig way to restore the aging drain, waste, and vent systems that sit beneath an estimated 2.5 million Florida homes built before 1980. Decades of corrosion, scale, and joint failure leave these pipes leaking, restricted, and prone to backups, but the answer is no longer trench-and-replace.

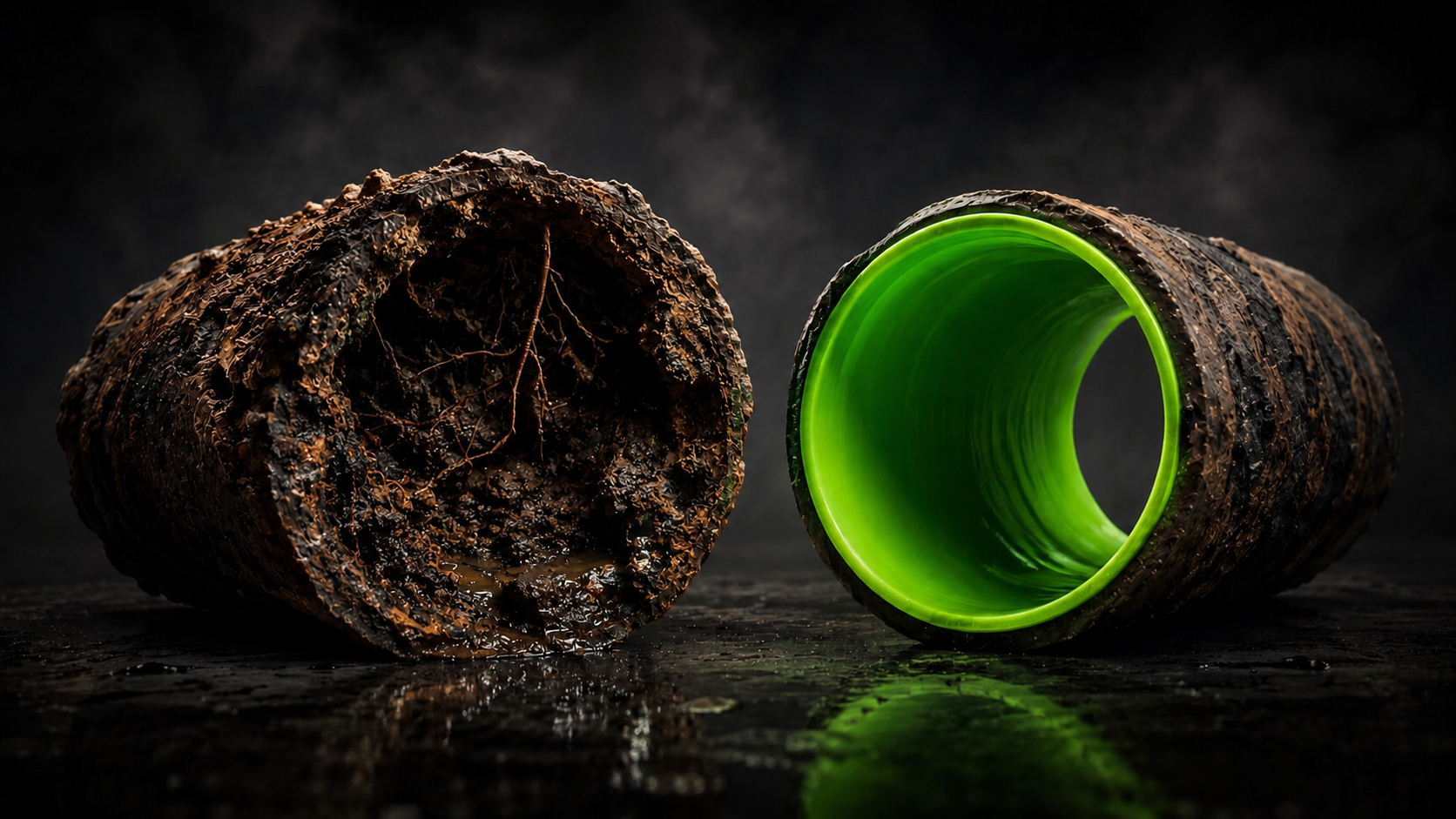

Using UV-cured cured-in-place pipe (CIPP) technology, we install a structural epoxy liner inside your existing cast iron pipe. The liner seals every crack and joint, restores full flow capacity, and adds 50+ years of service life, all without breaking your slab, tearing up flooring, or excavating your yard. Most residential projects are completed in 1 to 3 days and are backed by a Lifetime Warranty on labor and materials.
Why Cast-Iron Pipes Are Failing
Cast iron pipes were the residential plumbing standard in Florida through the late 1970s. Builders chose it because it was strong, fire-resistant, and quieter than alternatives. What no one accounted for is how aggressively Florida's environment would degrade it from the inside out. Three forces drive cast iron failure in Florida homes:
High Water Tables & Saturated Soils
Most of Florida sits between two and five feet above the water table. Cast iron pipes buried in saturated, mineral-rich soil corrode from the outside in, while constant moisture inside corrodes the iron from the inside out. The result is bidirectional decay that thins pipe walls until they crack, sag, or collapse.
Sulfuric Acid From Waste
Wastewater sitting in cast iron pipes generates hydrogen sulfide gas. When that gas combines with moisture and oxygen in the lower half of the pipe, it forms sulfuric acid. The acid eats away at the bottom of the pipe faster than the top, leaving a characteristic failure channel along the bottom interior surface.
Hardened Scale & Reduced Flow
As cast iron corrodes, the rust and tuberculation build into rough scale that lines the inside of the pipe. This scale catches paper, hair, grease, and debris, accelerating clogs. By the time most homeowners notice slow drains or recurring backups, the pipe's effective diameter has been reduced by 30 to 50 percent.
50 to 70 Years In,
Failure Is A "When,"
Not An "If."
Three failure modes compound over decades. Every pre-1980 Florida home is now in the danger zone.
Cast Iron Lining
Adds 50+ Years
Of Service Life.
A structural liner bonds inside the existing pipe, stopping decay and restoring full diameter. No demolition required.
What Is UV-Cured Cast Iron Pipe Lining?
UV-cured cast iron pipe lining is a trenchless rehabilitation method that installs a structural epoxy liner inside an existing pipe. Once cured, the liner functions as a new pipe within the old one, sealing leaks, bridging cracks, and restoring smooth interior flow. The cure happens in minutes rather than hours, and the work is performed entirely through existing access points without breaking up floors, slabs, or landscaping.
The technical name is UV-CIPP, short for ultraviolet-cured cured-in-place pipe. A train of high-intensity ultraviolet LED lights is pulled through the inserted liner, activating the epoxy resin and curing it from soft and pliable into a hard, structural composite. UV cure is faster, more controlled, and more weather-independent than the older steam-cure and ambient-cure methods used in legacy CIPP installations.
UV-CIPP vs. Epoxy Coating: A Structural Difference
Class IV Repair · 3-10 Year Warranty
Sometimes marketed as "spray lining" or "brush coating," epoxy coating sprays a thin layer of resin onto the inside of a pipe. It can fill small surface defects but does not add structural integrity. Industry standards classify it as the lowest structural class.
Class I Structural Repair · Lifetime Warranty
UV-CIPP meets ASTM F1216, F1743, and F2019. The cured liner is strong enough to function as a standalone pipe even if the surrounding host pipe fails completely. That classification is why UV-CIPP qualifies for a Lifetime Warranty.
What UV-CIPP Can Restore
- All drainage, waste, and vent piping from 2 in. and up
- Complex pipe systems under slab or in wall with 45° and 90° bends
- All branch connections, laterals, and sewer mains
What UV-CIPP Cannot Restore
- Pipes with full collapse (no remaining host pipe to line against)
- Pipes that have separated at joints with significant offset
- Pipes with active root intrusion that has fractured the host pipe wall
In these cases, a hybrid approach is used: spot excavation to repair the failed section, followed by UV-CIPP through the rest of the run. A camera inspection determines which method applies before any work is quoted.
The Southeast Services 8-Step Lining Process
Every Southeast Services cast iron lining project follows the same eight-step process, regardless of project size. The process is designed to be transparent at every stage. Homeowners see the condition of their pipes before work begins, watch the lining process in real time if they choose, and receive a final inspection video confirming the work.
- Step 1
Free Camera Inspection
A Certified Inspector performs a complete camera inspection using an HD push camera and locator system. We document pipe condition following nationally defined protocols and provide you with copies of every video.
- Step 2
Transparent Proposal
You receive a written proposal specifying each pipe segment and its rehabilitation details. It is an all-inclusive package price with no guesswork or unknowns to be surprised by later.
- Step 3
Scheduling & Permitting
Once the proposal is signed, the office coordinates municipal permitting, schedules the project, and provides a written project plan. Most residential projects start within 2 to 4 weeks.
- Step 4
Pre-Lining Pipe Cleaning
The crew performs mechanical cleaning of the host pipe using descaling tools matched to pipe diameter and scale severity, exposing the bare wall so the liner bonds correctly.
- Step 5
Post-Cleaning Inspection
A second camera inspection confirms the pipe is fully cleaned and ready for lining. This footage is included in the project file and provided to the homeowner.
- Step 6
Liner Installation
The epoxy-saturated liner is inserted through an existing access point and inflated against the host pipe interior, conforming to bends, transitions, and diameter changes.
- Step 7
UV Cure
A UV LED light train is pulled through the inflated liner at a controlled speed, curing the resin into a hard structural composite. Cure is typically completed in under one hour.
- Step 8
Final Inspection & Warranty
A final camera inspection documents the finished lined pipe end-to-end. The video is delivered along with the Lifetime Warranty certificate. The home is returned to full service the same day.
Lining vs. Replacement: The Real Difference
The traditional alternative to cast iron pipe lining is excavation and replacement: breaking up concrete slab floors, removing flooring and cabinetry, digging trenches through the home's foundation, replacing the failed pipe, backfilling, allowing the concrete to cure, and rebuilding everything that was demolished. The cost and disruption differences are not close.
Traditional
Trench & Replace
Cost (typ. 2,000 sq ft, ~90 LF under-slab)
$37,000 – $89,000 All-In
Project Timeline
4 – 6 Weeks
Demolition Required
Slab, Flooring, Cabinetry, Drywall Cuts
Restoration Required
Slab, Flooring, Cabinetry, Paint, Trim
Displacement During Work
Most Homeowners Must Vacate Part Of The Project
Warranty
1-Year Labor Warranty Only
The Modern Way
Cast Iron Pipe Lining
Cost (typ. 2,000 sq ft, ~90 LF under-slab)
$15,000 – $22,000 All-In
Project Timeline
1 – 3 Days
Demolition Required
None. Existing Access Points Only.
Restoration Required
None
Displacement During Work
Homeowners Stay. Plumbing Restored Same-Day.
Warranty
Lifetime Warranty On Both Labor And The Materials
$20K–$70K
Choosing UV-CIPP cast iron pipe lining over trench & replace puts tens of thousands of dollars back in your pocket on a typical Florida home.
Up To 75%
Lower Total Project Cost
1–3 Days
Versus Up To 6 Weeks
Zero
Demolition Or Restoration
What Cast Iron Pipe Lining Costs in Florida
Cast iron pipe lining is priced per linear foot of pipe lined, with adjustments for pipe system complexity and site access. Total project cost depends on three factors detailed below.
Florida Market Range
Per Linear Foot
The Florida market range is variable. Pricing below this range often signals incomplete scope, lack of clarity on the rehabilitation method, partial projects, limited warranties, or contractors that play the change order game.
Total Linear Footage
Most pre-1980 Florida homes have 80 to 120 linear feet of cast iron drain pipe under the slab, with additional vertical and branch pipe upstairs. A free camera inspection produces an exact measurement before any number is quoted.
Pipe System Complexity
Simple straight runs line at the lower end of the per-foot range. Pipes with multiple bends, diameter transitions, branch connections, and unusual configurations require more setup time and material, moving cost toward the upper end.
Access Conditions
Homes with accessible cleanouts, working vent stacks, and clear pipe routing line at standard cost. Buried or missing cleanouts, restricted attic access, or pipes requiring temporary access creation carry an access surcharge.
Every Proposal Is Clear
No hidden surprises, no change order games, simply a detailed, no-guesswork proposal for transparent understanding.
What You'll See On The Proposal
- Transparent, Clear Pricing
- Measured Linear Footage
- Required Access Points
- All Pipe Segments Included
Lifetime
Warranty
The Strongest Warrantyin the Cast Iron Lining Category
Southeast Services backs every UV-CIPP installation with a lifetime warranty on both labor and materials. The warranty is transferable to the new property owner, should you ever sell your property.
Trench & Replace
1 – 5
Year Warranty
Epoxy Coating
3 – 10
Year Warranty
Southeast Services UV-CIPP
Lifetime
Warranty On Labor & Materials
Full warranty terms are provided in writing before signing any proposal.
Five Counties Across the Treasure & Space Coast
Southeast Services provides residential cast iron pipe lining across five Florida counties along the Treasure Coast and Space Coast. Every county includes both coastal communities (where salt-air corrosion accelerates failure) and inland communities (where well-water mineral content drives scale buildup). The geographic concentration lets our crew serve the full territory from a single Vero Beach base, without the response-time degradation that comes with overextended service areas.
Frequently Asked Questions
The pricing range for residential cast iron pipe lining in Florida generally runs between $175 and $250 per linear foot, plus variables for pipe system complexity and access conditions. Total project cost depends on the linear footage of pipe, the number of bends and transitions, and access conditions at the home. A free camera inspection produces an exact measured proposal before any number is quoted.
Schedule a Free Cast Iron Pipe Inspection
If your home was built before 1980, your cast iron drain system is likely showing signs of age that a homeowner cannot see from the outside. A free camera inspection is the only way to know the actual condition of your pipes and the only way to receive a measured, written proposal for cast iron pipe lining.
